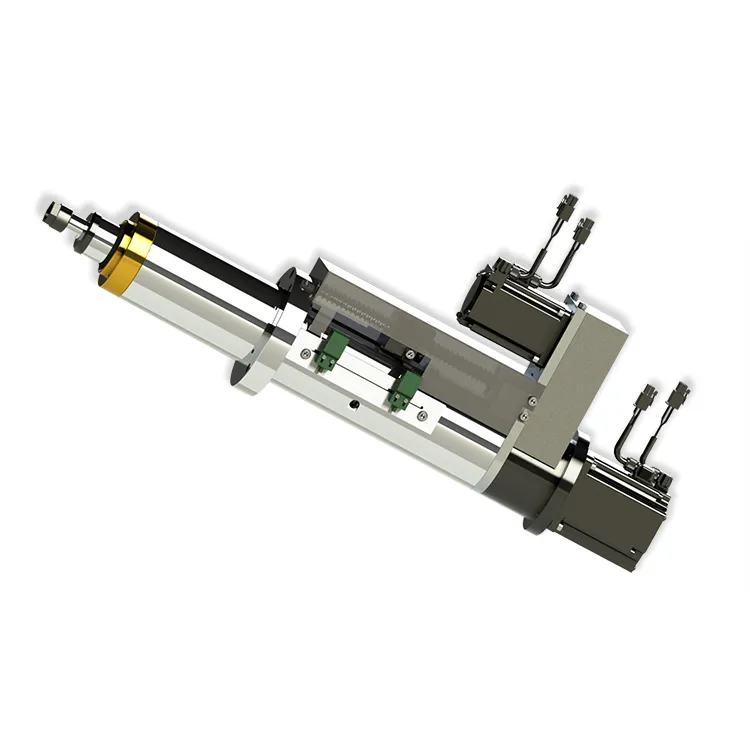

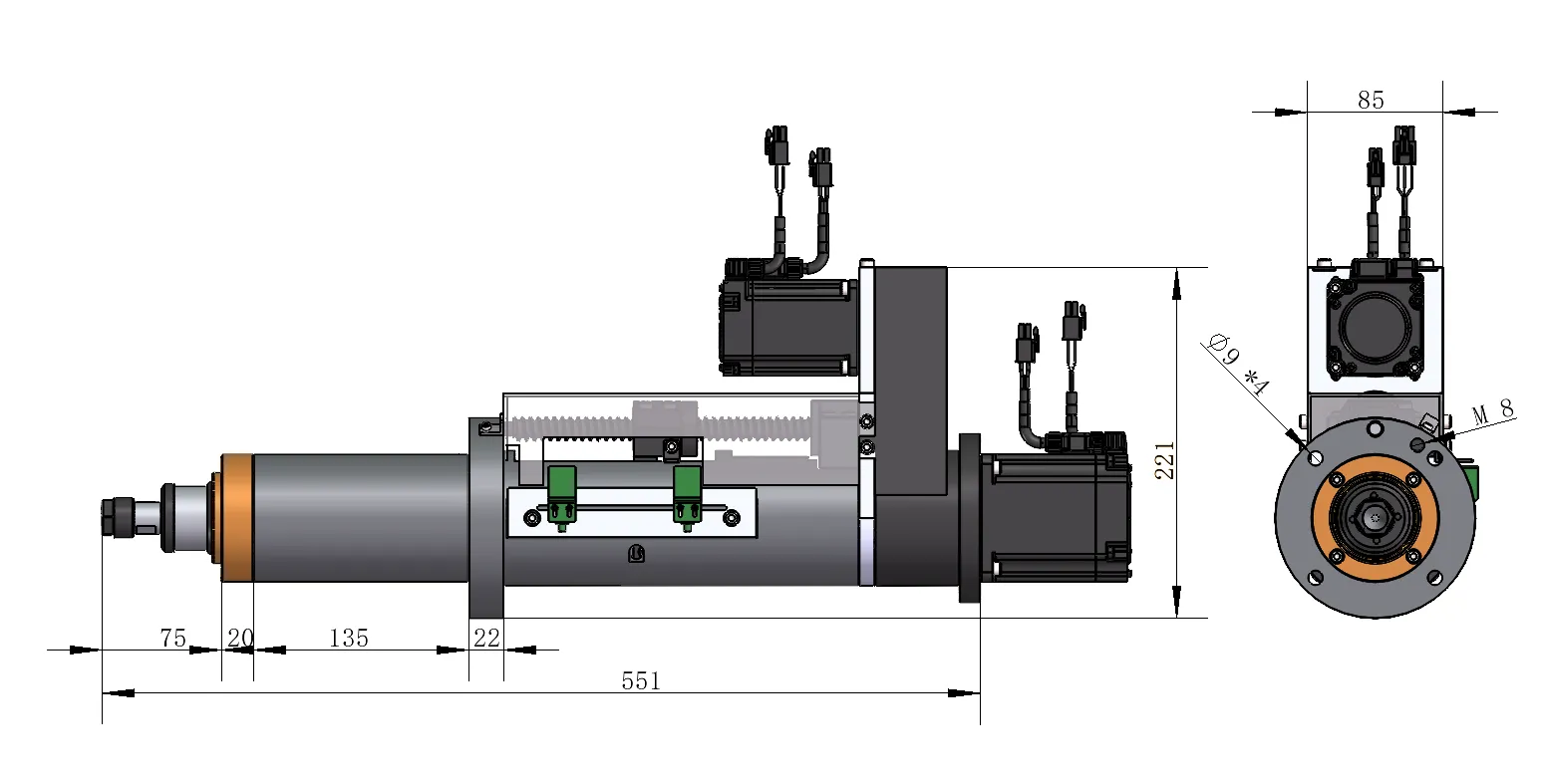

Tapping spindle unit BD03
Drilling power head BD3
▶ Specifications Drilling/Tapping Capacity (S45C) φ 0.75- φ 8MM
Product parameters
▶ Specifications
| Drilling/Tapping Ability | Drilling / Tapping Capacity(S45C) | φ0.75-φ8 / M1-M6 (S45C) |
| clamping capacity | Clamping Capacity | ER16 (Ø1-Ø10) |
| maximum travel | Max. Stroke | MAX 80mm |
| Machinable tooth pitch | Thread Pitch | Arbitrary setting of numerical control |
| weight | Weight | 18Kg (excluding motor) |
| Whether to maintain | Whether to maintain | maintenance free |
| Transmission mode | Pulley type | Groove type, HT.D.-5M240 * 15 |
| Maximum speed | Max. RPM | 12000rpm |
| Servo motor power | Servo power | 0.75kw/0.4kw,220V |
▶ consumables
| Spindle bearing | Spindle Bearing | 7002C*2,7001C*1 |
| Pulley bearing | Pulley Bearing | 6203ZZ*2 |
| oil seal | Seal | DKB-40,52 * 61 |
▶ processing capacity
| Model | RPM | Single and multi-axis machining capabilities | Stroke adjustment range (mm) | ||||||
| BD03 | drilling | Tapping | 1 axis | 2 axis | maximum travel | fast forward travel | Processing stroke | ||
| aluminum | steel | aluminum | steel | ||||||
| Max 12000 | Max 3000 | M8 | M6 | M6 | M4 | 0~80 | 0~60 | 0~60 | |
Note: The maximum rotation speed depends on the power unit speed, and the working stroke fast-forward and machining stroke can be freely set in the control system.
● This product with numerical control system solution, visual parameter setting, easy and flexible operation
● Can be preset to work, the first and second multiple processing origins to improve processing efficiency, and can also be used as upper and lower limit points to ensure safe use
●
需要加工螺纹大小,牙距参数，均可随意设定,可加工在能力内的任意尺寸螺纹
● High-precision overall structure design, greatly reducing spindle runout, improving product rigidity, suitable for fine holes, such as 0.75MM
● Various bases can be selected, stable and simple, suitable for various assembly methods
● The entire chassis has been ground, and the chassis can be used as a benchmark
